- Class notation
ClassName -attribute1 : Type
-attribute2 : Type+method1(param1:Type,param:Type):Type
+method2(param1:Type,param:Type):Type- visibility of attribute or method
- - indicates private visibility i.e. Java private access modifier
+ indicates public visibility i.e. Java public access modifier - different style and details
-

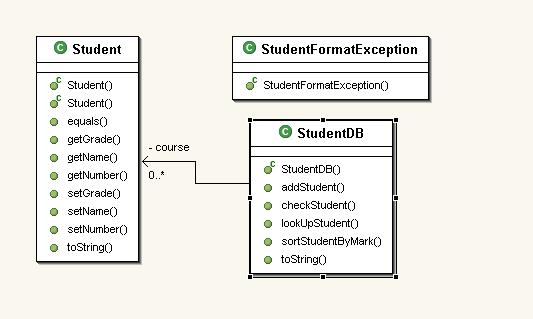

Student -number: int
-name: String
-grade: int+Student(number,name,grade)
+Student(number)
+getNumber(): int
+getName(): String
+getGrade(): int
+setNumber(number): void
+setName(name): void
+setGrade(grade): void
+equals(student): boolean
+toString(): String
StudentDB -INITIAL_SIZE: int
-studNum: int
-course: Student[]+StudentDB()
+addStudent(student): void
+checkStudent(student): boolean
+lookUpStudent(student): Student
+sortStudentByMark(): void
+toString(): String
+getStudNum(): int
- UML standard
- Elcipse
- private
- does not allow that other classes have access to this attribute or method
- public
- allows that all the other classes have access to this attribute or method
- constructor
- method to create instance of the class, has the same name as the class
- accessors and mutators
- methods to access the value of an private attribute or to modify an private attribute
